WHY SUR-TAP™ XTRA?
Greener Binder
Better Performing
Easier to Use
GREENER BINDER
Contains a clean burning, zero PAH binder
Reduced health and environmental impacts
SUR-TAP™
SUR-TAP™ XTRA
PAH = Polycyclic Aromatic Hydrocarbons
PAHs are ubiquitous in the environment.
Health Effects
PAHs generally have a low degree of acute toxicity to humans.
Increased incidences of lung, skin, and bladder cancers are associated with occupational exposure to PAHs.
Studies show that PAHs affect the hematopoietic (blood formation), immune, reproductive, and neurologic systems and cause developmental effects.
Environmental Effects
Most PAHs in the environment are from man-made processes.
PAHs are found in industries that produce or use coal tar, coke, or bitumen (asphalt).
PAHs mostly accumulate in soils.
OSHA’s permissible exposure limit (PEL) for PAH in the workplace is 0.2 mg/m³ for benzene-soluble coal tar pitch fraction of air (8-hour time weighted average).
OSHA requires workers to be trained in the proper use of appropriate PPE and safety.
Workers must receive medical surveillance if exposed above the PEL.
EPA’s maximum contaminant level (MCL) for PAH in drinking water is 0.2 ppb.
Coal tar pitch containing substances have been banned in Canada and Europe.
As with most hazardous substances, regulations are likely to further limit the human and environmental exposure to PAHs.
BETTER PERFORMING
Improved rate of strength generation.
Insert strength vs. temperature chart

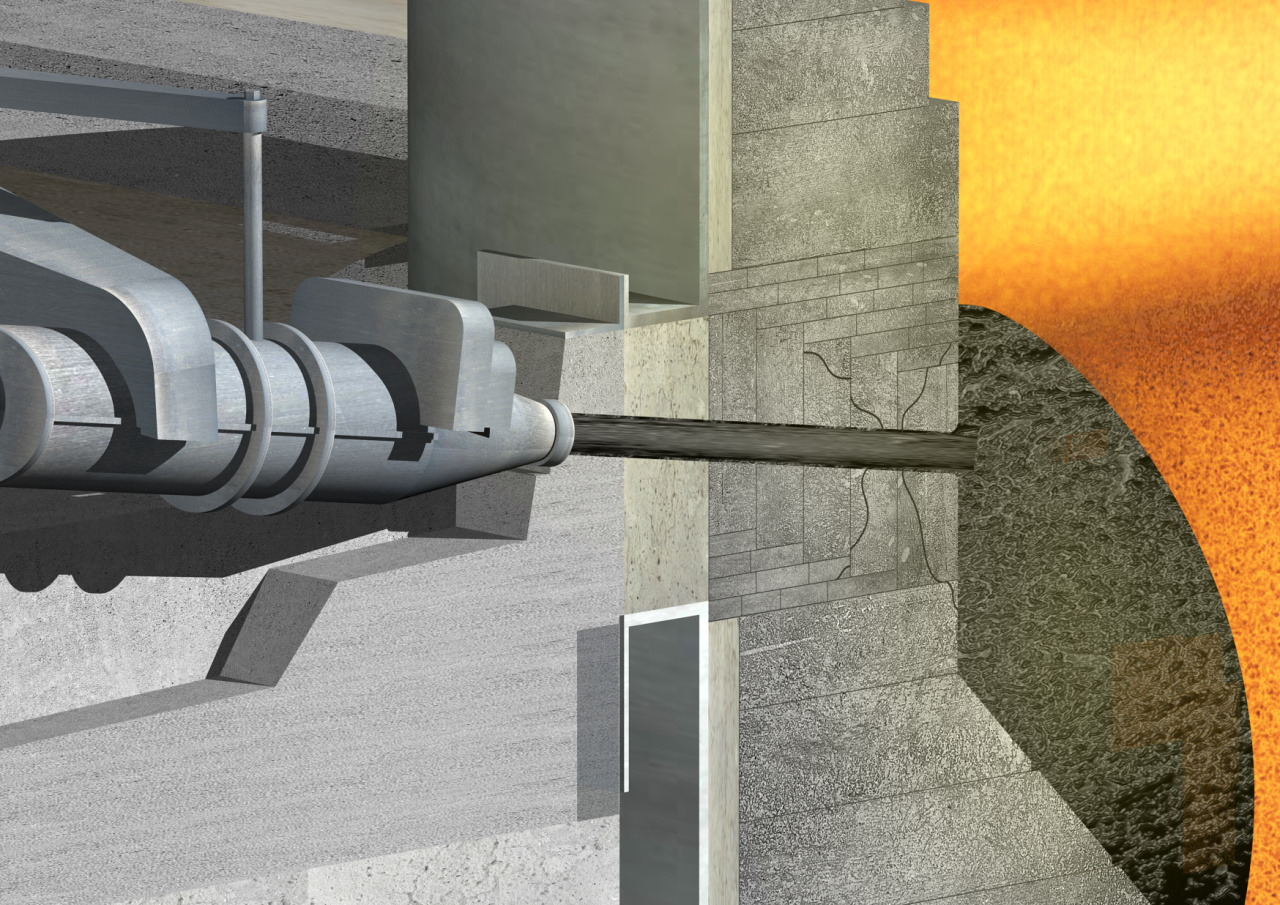

Improved erosion resistance for longer tapholes.
Customers have seen longer tapholes and slower erosion.
Resulting in being able to reduce their clay injection 10-15%.
Cast times equal to or greater than equivalent tar bonded clays.
Tailored SUR-TAP™ XTRA Products
| SUR-TAP™ XTRA 100 | High purity raw materials and additives for specialized, low output ironmaking furnaces. |
| SUR-TAP™ XTRA 200 | Carefully selected base raw materials and additives for smaller blast furnaces. |
| SUR-TAP™ XTRA 300 | High purity raw materials with erosion and corrosion additives for medium to large blast furnaces. |
| SUR-TAP™ XTRA 400 | High purity raw materials with more erosion and corrosion additives for large blast furnaces. |
EASIER TO USE

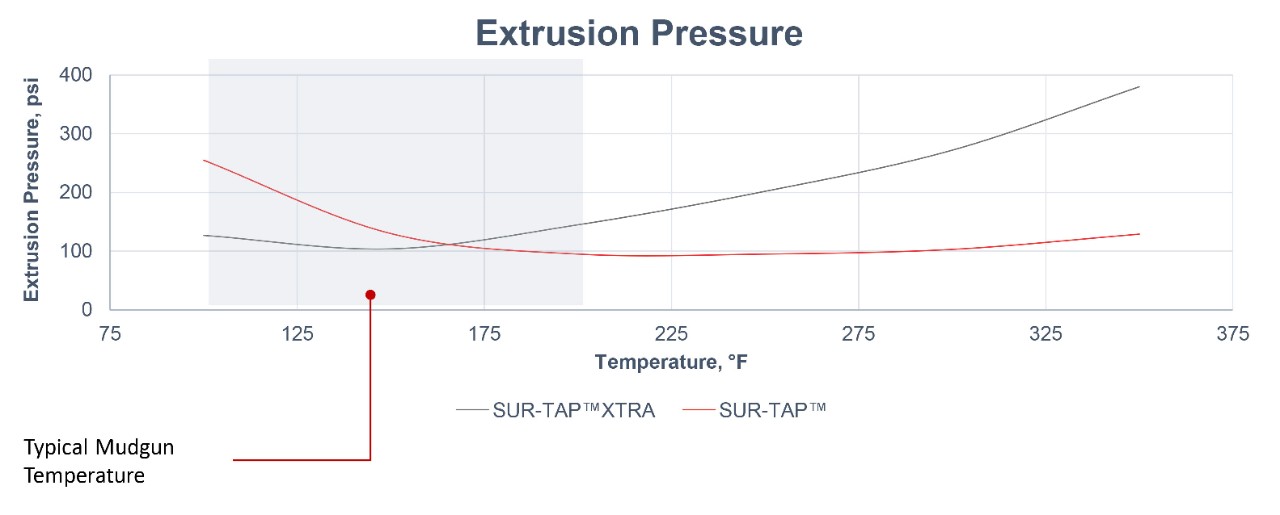

Stable extrusion pressure over wide mudgun temperature range

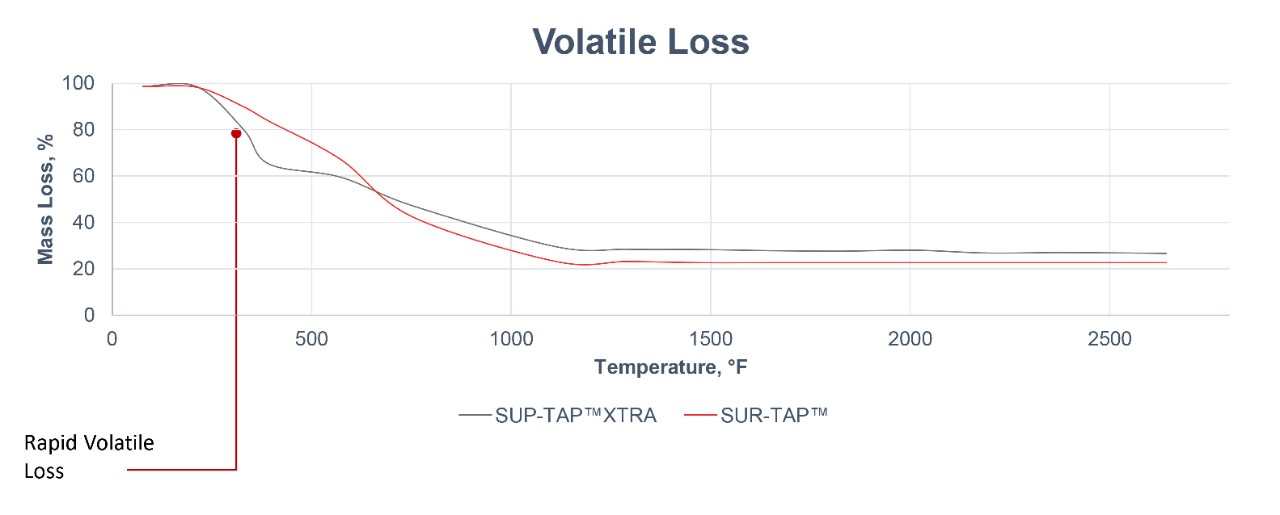

Rapid volatile loss at lower temperatures, reducing wet taphole conditions
