PDM250 – Powder Distribution Mechanism for the Mould
The PDM250 is a Mould Powder Distribution Mechanism using compressed air to deliver granulated powder into the mould of a continuous caster.

Main advantages
- Adjustable volume flow rate
- Adapted for bloom and billet mold
- Continuous delivery of granulated powder in the mould
- Designed for up to 6 independantly controlled discharge lines
- Mobile unit with «plug and play» installation
- Customized design of discharge nozzles
- Remote control by a wireless pendant or touchscreen HMI


PDM250

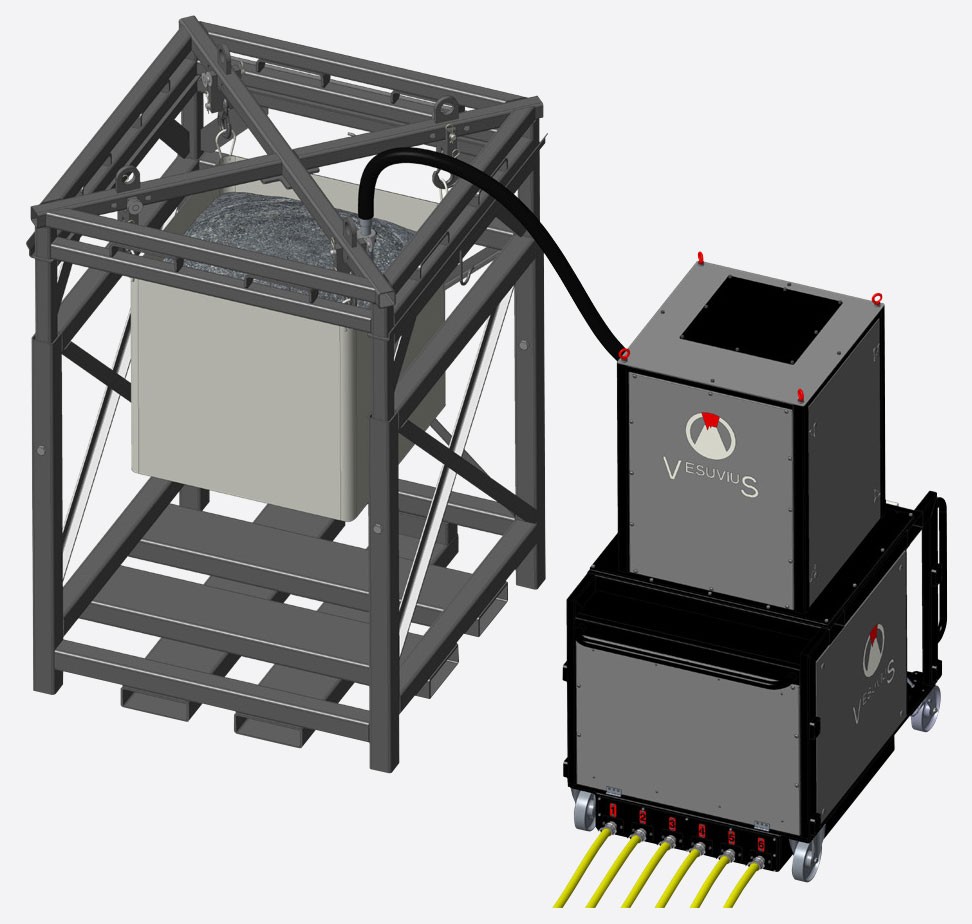

The PDM250 uses a vacuum unit to aspirate the granulated powder from a remotelylocatedbulksource(bulkbag or silo).
Control

Touchscreen HMI for parameters

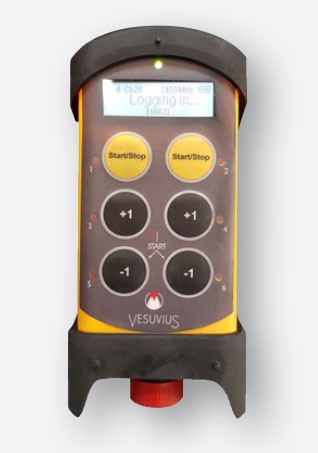

Wireless remote pendant for setting of

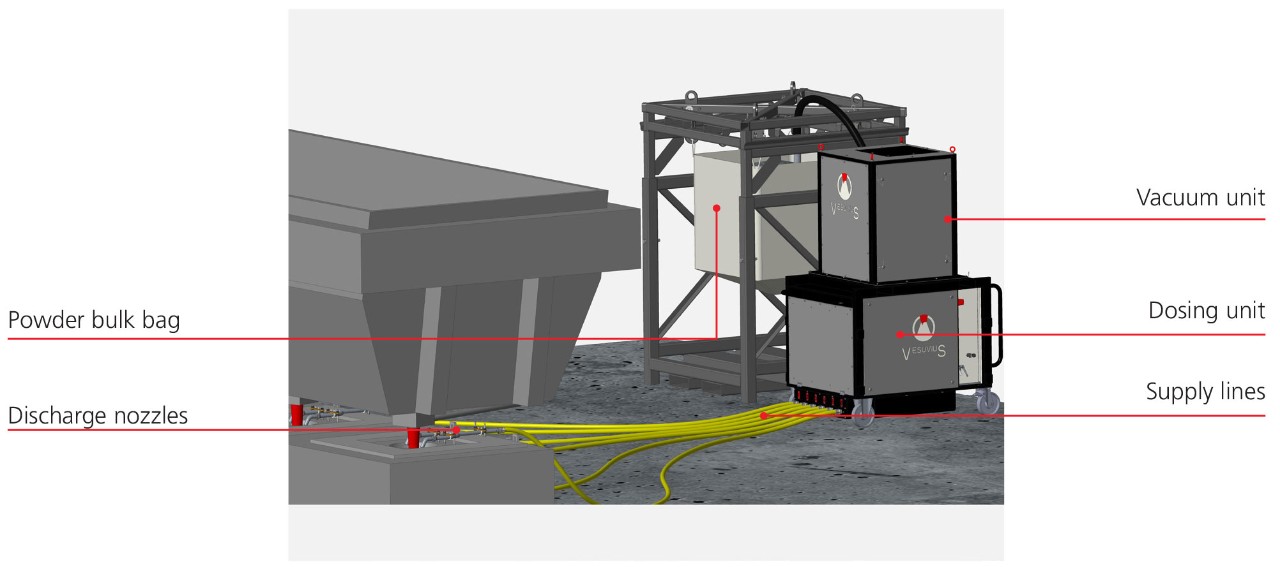

Examples of installation

Billet moulds

Bulk bag stand (optional)

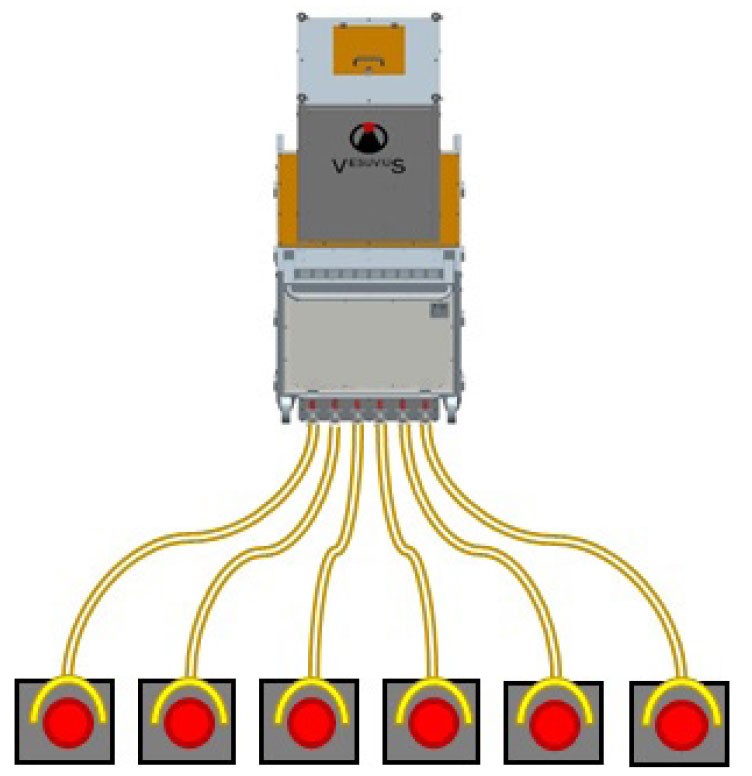

Discharge nozzles according to mould configuration
